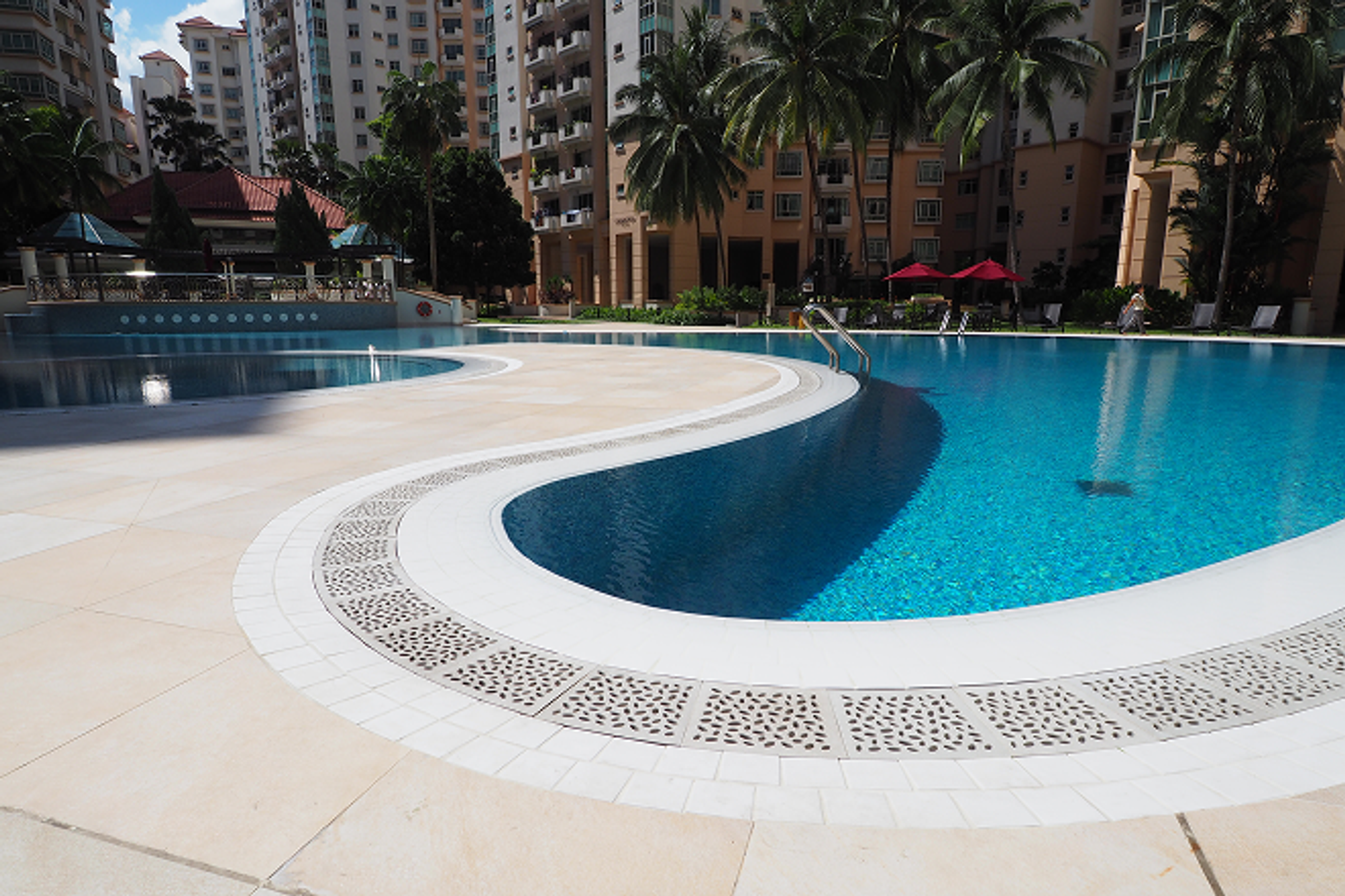

Slip-resistant reinforced stone overflow pool grate
HARDSCAPE

Pool Grates

With its natural beauty and suitability superior to natural granite, Jonite swimming pool grates make for the perfect pool grating. We design our pool grates for overflow swimming pools. Pool surface flushes with the overflow tiles and grills, creating a perfect match for water line and nature.

  • Toddler-safe
  • Colour durability due to low water absorption
  • Slip-resistant
  • Heat resistant
  • Environmentally friendly

Loading Specifications

5KN
  • Some Jonite products are built for pedestrian usage
  • Jonite incorporates ADA-certified grates in our range of products for greater accessibility

Strictly for pedestrian application only

US MODELS

Our Decorative Pool Grate Designs

Swimming pools are no longer seen just as an amenity; today, they are part of an enticing landscape. A swimming pool can make or break an entire hardscape design. Overflow pools are the most common type in residential and commercial properties. Landscape architects can express their vision by introducing various shapes, colors, and tiles to make something completely different.

Our custom designs provide exceptional performance in conjunction with the protective coping made by pool companies. The coping separates a swimming pool’s shell and the surrounding surface area, preventing water from getting behind the shell and directing the flow of splashed liquid into your grate drains. Made with advanced hybrid polymers and 95% natural aggregates, our materials deliver strength and durability to last in outdoor conditions with regular use.

Compliant with international load standards, our grates include specially treated steel frames. Low water and heat absorption make the products ideal for pools receiving direct sunlight. With rust prevention, these reinforcements can deliver beauty and function for a lifetime.

Read more Show less

Available Colours

*Please note that the samples inherit their core colours from their natural sources, colour may vary slightly from the images shown.
Ivory White Ivory White
Wacky White Wacky White
Rosy Beige Rosy Beige
Desert Beige Desert Beige
Champagne Yellow Champagne Yellow
Granite Grey Granite Grey

Benefits of Choosing Jonite Pool Coping Grates

Jonite swimming pool gratings bring in a natural stone that adds a high-end elegance reminiscent of ancient Greece and luxurious Roman pools. Our capabilities to create custom pool grates upon request help bring your ideas to life. In addition to offering an appealing aesthetic, our grates provide the following benefits:

  • Toddler-safe: The small elliptical holes of baby pebbles and narrow slit slots of the Chiseled Rain design collection eliminate the danger of toddlers catching their toes in the pool grating.
  • Fade-resistant: Our pool gratings have a low water absorption rate of 0.5%. They maintain their color when in contact with pool water, unlike natural stone slabs, which can discolor when in contact with water.
  • Slip-resistant: Our swimming pool grates have excellent natural slip resistance, making it comfortable and safe for both children and adults, especially in frequently wet areas.
  • Heat resistant: Our pool grates are also heat resistant, which makes the gratings more comfortable to step on in the heat of the midday sun.
  • Corrosion-resistant: Our pool grates are built using composite reinforcements, ensuring longevity in the swimming pool as it is corrosion-resistant.
Read more Show less

COLLECTIONS

Pebbles 5 SEE PRODUCTS US POOL GRATES

Discover ADA-compliant Jonite pool grates, where safety and elegance converge. Our grates offer both durability and design, transforming pools into serene, stylish oases. Elevate your pool experience with the unmatched aesthetics of Jonite.

SHOW ALL HIDE PRODUCTS
Pebbles 3

Pebbles 3"

Load Class 6KN
Suitable Channels NDS Mini Channels
ADA Yes
Dimensions 3”W x 24”L x 0.98”T
Interlace 3

Interlace 3"

Load Class A15
Suitable Channels NDS Mini Channels
ADA Yes
Dimensions 3”W x 24”L x 0.98”T
Pebbles 5

Pebbles 5"

Load Class 6KN
Suitable Channels ACO, ULMA, MEA
ADA Yes
Dimensions 5”W x 19.69”L x 0.75”T
Chiseled 5

Chiseled 5"

Load Class A15
Suitable Channels ACO, ULMA, MEA
ADA Yes
Dimensions 5”W x 19.69”L x 0.87”T
Cross-Stitch 5

Cross-Stitch 5"

Load Class A15
Suitable Channels ACO, ULMA, MEA
ADA Yes
Dimensions 5”W x 19.69”L x 0.75”T
Keyhole 5

Keyholes 5"

Load Class A15
Suitable Channels ACO, ULMA, MEA
ADA Yes
Dimensions 5”W x 19.69”L x 0.87”T
Interlace 5

Interlace 5"

Load Class A15
Suitable Channels ACO, ULMA, MEA
ADA Yes
Dimensions 5”W x 19.69”L x 0.87”T
Palm 5

Palm 5"

Load Class A15
Suitable Channels ACO, ULMA, MEA
ADA Yes
Dimensions 5”W x 19.69”L x 0.87”T
Square Slots 5

Square Slots 5"

Load Class A15
Suitable Channels ACO, ULMA, MEA
ADA Yes
Dimensions 5”W x 19.69”L x 0.75”T
Pebbles 11.8

Pebbles 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 19.69”L x 1.38”T
Chiseled 11.8

Chiseled 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 19.69”L x 0.98”T
Cross-Stitch 11.8

Cross-Stitch 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 19.69”L x 0.98”T
Keyhole 11.8

Keyholes 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 19.69”L x 1.1”T
Interlace 11.8

Interlace 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 19.69”L x 0.98”T
Palm 11.8

Palm 11.8"

Load Class 5KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 19.69”L x 1.1”T
Square Slots 11.8

Square Slots 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 19.69”L x 0.98”T
Baby Pebbles 9.6

Baby Pebbles 9.6"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 9.6”W x 11.8”L x 0.98”T
Baby Pebbles 11.8

Baby Pebbles 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 11.8”L x 0.98”T
Baby Pebbles 13.8

Baby Pebbles 13.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 13.8”W x 11.8”L x 1.18”T
Chiseled Rain 9.6

Chiseled Rain 9.6"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 9.6”W x 11.8”L x 0.98”T
Chiseled Rain 11.8

Chiseled Rain 11.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 11.8”L x 0.98”T
Chiseled Rain 13.8

Chiseled Rain 13.8"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 13.8”W x 11.8”L x 1.18”T
Slotted 8.3

Slotted 8.3"

Load Class A15
Suitable Channels Concrete
ADA Yes
Dimensions 8.3”W x 19.69”L x 0.98”T
Slotted 11.5

Slotted 11.5"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.5”W x 19.69”L x 0.98”T
Slotted 14

Slotted 14"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 14”W x 19.69”L x 0.98”T
Slotted 17

Slotted 17"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 17”W x 19.69”L x 1.38”T
Slotted 19.7

Slotted 19.7"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 19.7”W x 14.37”L x 1.38”T
Overflow Interlace 12

Overflow Interlace 12"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 12”W x 20”L x 1.1”T
Overflow Interlace 20

Overflow Interlace 20"

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 20”W x 20”L x 1.1”T
Baby Pebbles 9.6

Baby Pebbles 9.6" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 9.6”W x 11.8”L x 0.98”T
Baby Pebbles 11.8

Baby Pebbles 11.8" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 11.8”L x 0.98”T
Baby Pebbles 13.8

Baby Pebbles 13.8" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 15.75” x 15.75” x 1.18”T
Chiseled Rain 9.6

Chiseled Rain 9.6" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 9.6”W x 11.8”L x 0.98”T
Chiseled Rain 11.8

Chiseled Rain 11.8" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.8”W x 11.8”L x 0.98”T
Chiseled Rain 13.8

Chiseled Rain 13.8" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 13.8”W x 11.8”L x 1.18”T
Slotted 8.3

Slotted 8.3" Corner

Load Class A15
Suitable Channels Concrete
ADA Yes
Dimensions 8.3”W x 19.69”L x 0.98”T
Slotted 11.5

Slotted 11.5" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 11.5”W x 19.69”L x 0.98”T
Slotted 14

Slotted 14" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 14”W x 19.69”L x 0.98”T
Slotted 17

Slotted 17" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 17”W x 19.69”L x 1.38”T
Slotted 19.7

Slotted 19.7" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 19.7”W x 14.37”L x 1.38”T
Overflow Interlace 12

Overflow Interlace 12" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 14” x 14” x 1.1”T
Overflow Interlace 20

Overflow Interlace 20" Corner

Load Class 6KN
Suitable Channels Concrete
ADA Yes
Dimensions 22” x 22” x 1.1T
Baby Pebble Pool Grates SEE PRODUCTS BABY PEBBLE

Jonite Baby Pebble Pool Grate Collection consists of 3 standard sizes. Designed to be toddler-friendly, this contemporary collection with small slots will add character to the pool.

SHOW ALL HIDE PRODUCTS
BP245H25 Baby Pebble pool grate
65110

BP245H25

Load class 6 KN
Drain width 190 to 215mm
Dimension 245W x 300L x 25mm(t)
BP300H25 Baby Pebble pool grate
65111

BP300H25

Load class 6KN
Drain width 240 to 270mm
Dimension 300W x 300L x 25mm(t)
BP350H30 Baby Pebble pool grate
65112

BP350H30

Load class 6 KN
Drain width 280 to 310mm
Dimension 350W x 300L x 30mm(t)
90 BP245H25 Baby Pebble pool grate
67110C

90° BP245H25

Component BP Corner-Grate
Suitable for BP245H25
90 BP300H25 Baby Pebble pool grate
67111C

90° BP300H25

Component BP Corner-Grate
Suitable for BP300H25
90 BP350H30 Baby Pebble pool grate
67112C

90° BP350H30

Component BP Corner-Grate
Suitable for BP350H30
BE-BP245H25 Baby Pebble pool grate
67113C

BE-BP245H25

Component 50mm *BLANK-ENDS for BP245H25
Dimension 245W x 300L x 25mm(t)
BE BP300H25 Baby Pebble Pool Grate
67114C

BE-BP300H25

Component 50mm *BLANK-ENDS for BP300H25
Dimension 300W x 300L x 25mm(t)
BE BP350H30 Baby Pebble Pool Grate
67115C

BE-BP350H30

Component 50mm *BLANK-ENDS for BP350H25
Dimension 350W x 300L x 30mm(t)
Chiseled Rain Pool Grates SEE PRODUCTS CHISELED RAIN

Available in 3 standard sizes, the Chiselled Rain collection has an avant garde graphic that will add a touch of sophistication in your pool designs.

SHOW ALL HIDE PRODUCTS
CR245H25 chiseled rain pool grate
66110

CR245H25

Load class 6 KN
Drain width 190 to 215mm
Dimension 245W x 300L x 25mm(t)
CR300H25 chiseled rain pool grate
66111

CR300H25

Load class 6 KN
Drain width 240 to 270mm
Dimension 300W x 300L x 25mm(t)
CR350H30 chiseled rain pool grate
66112

CR350H30

Load class 6 KN
Drain width 280 to 310mm
Dimension 350W x 300L x 30mm(t)
90 CR245H25 Chiseled Rain corner grate
68110C

90° CR245H25

Component CR Corner-Grate
Suitable for CR245H25
90 CR300H25 Chiseled Rain corner grate
68111C

90° CR300H25

Component CR Corner-Grate
Suitable for CR300H25
90 CR350H30 Chiseled Rain corner grate
68112C

90° CR350H30

Component CR Corner-Grate
Suitable for CR350H30
BE-CR245H25 Chiseled Rain pool grate
68113C

BE-CR245H25

Component 50mm *BLANK-ENDS for CR245H25
Dimension 245W x 300L x 25mm(t)
BE-CR300H25 Chiseled Rain pool grate
68114C

BE-CR300H25

Component 50mm *BLANK-ENDS for CR300H25
Dimension 300W x 300L x 25mm(t)
BE-CR350H30 Chiseled Rain pool grate
68115C

BE-CR350H30

Component 50mm *BLANK-ENDS for CR350H30
Dimension 350W x 300L x 30mm(t)
Trimmers Pool Grates SEE PRODUCTS ALL POOL GRATE COMPONENTS

Additional components such as pool grate tiles for irregular drains that require on-site cutting and L-trimmers for additional strength and enhanced aesthetic flair.

SHOW ALL HIDE PRODUCTS
PGT-400H25 pool grate tile
69110C

PGT-400H25

Component POOL GRATE-TILE (regular)
Dimension 400W x 400L x 25mm(t)
PGT-400H30 pool grate tile
69112C

PGT-400H30

Component POOL GRATE-TILE (regular)
Dimension 400W x 400L x 30mm(t)
PGT-500H25 pool grate tile
69111C

PGT-500H25

Component POOL GRATE-TILE (large)
Dimension 500W x 500L x 25mm(t)
PGT-500H30 pool grate tile
69113C

PGT-500H30

Component POOL GRATE-TILE (large)
Dimension 500W x 500L x 30mm
L-Trimmer 25-PG
69114C

L-TRIMMER 25-PG

Suitable for All Pool Grates of 25mm(t)
Dimension 60W x 300L x 35mm
L-Trimmer 30-PG
69115C

L-TRIMMER 30-PG

Suitable for All Pool Grates of 30mm(t)
Dimension 60W x 300L x 40mm
studs trimmer 25-PG
69116C

STUDS-TRIMMER 25-PG

Suitable for All Pool Grates of 25mm(t)
Dimension 60W x 300L x 40mm
studs trimmer 30-pg
69117C

STUDS-TRIMMER 30-PG

Suitable for All Pool Grates of 30mm(t)
Dimension 60W x 300L x 45mm

Types of Custom Swimming Pool Grating We Offer

Jonite offers customizable pool grates in natural hues, allowing you to match your surrounding landscape. We provide a couple of modern and avant-garde patterns for you to choose from in three standard sizes of drain widths and tile dimensions. Select the perfect appearance for your pool with these collections:

  • Baby Pebble: The design for this collection consists of small slots and rounded shapes to add character to a pool, creating an attractive style.
  • Chiseled Rain: The pattern for this design includes a contemporary graphic of abstract shapes, giving your pool sophisticated appeal.

We sell additional components you can add for extra strength and enhanced aesthetic flair. These pieces require on-site cutting with L-trimmers to achieve the perfect fit and a seamless appearance.

Read more Show less

OPTIONAL CUSTOMISATION

Jonite stone color options
  • Custom color, design, size and texture
  • Curve grates
  • Trimmers for added aesthetics
  • Handhold trimmers for improved user experience
  • Lockable grates
LEARN MORE

Why Trust Jonite as Your Swimming Pool Grate Provider?

Our journey as a company began with inspiration from the stone castles built in the Middle Ages. We wanted to bring the stunning aesthetic of stone to communities with unique designs for trench, tree and pool grates. After seven years of engineering and perfecting our craft, we launched the first stone composite grate for commercial use in 1994.

Today, our products have achieved worldwide recognition as a top choice for performance and style among the architectural, engineering and construction industries. With environmental stewardship gaining more consideration, we’re proud to employ sustainable practices and preserve the environment for future generations. This committed belief drives us to use at least 30% recycled content in all our products.

Want inspiration? Feel free to explore our portfolio of custom grates we’ve created for our clients. If you’d like to learn more about our materials, designs or applications, our dedicated team can help. We’ll gain an understanding of your goals and objectives to customize grates for any residential or commercial pool.

Read more Show less

FAQ

How durable are Jonite pool grates in a chlorine pool or fountain?

Jonite pool grates are extremely durable and designed to be chlorine-resistant. They contain reinforcements made of a lightweight non-ferrous composite material that prevents rusting without compromising on its excellent compressive strength.

Are pool grates necessary for my pool?

Pool grates may not be necessary for all pools, but they are extremely helpful for overflow pools. They are proven to significantly reduce splash from the pool when in use.

Can I use Jonite pool grates if my pool is not an overflow pool?

Absolutely. Jonite pool grates are excellent for pool decks as they drain and prevent dirty water from entering your pool during maintenance. Our many appealing grate designs also help to bring an aesthetic touch to your pool.

How do Jonite pool grates compare with natural stone cut pool grates?

It may be tempting to use the same stone flooring to cut slits or puncture holes and use them as a grate. However, they are a nightmare for maintenance as most are not strong enough even for human traffic. Some may overcompensate the strength with a much thicker slab, but that would only make the grate too heavy.

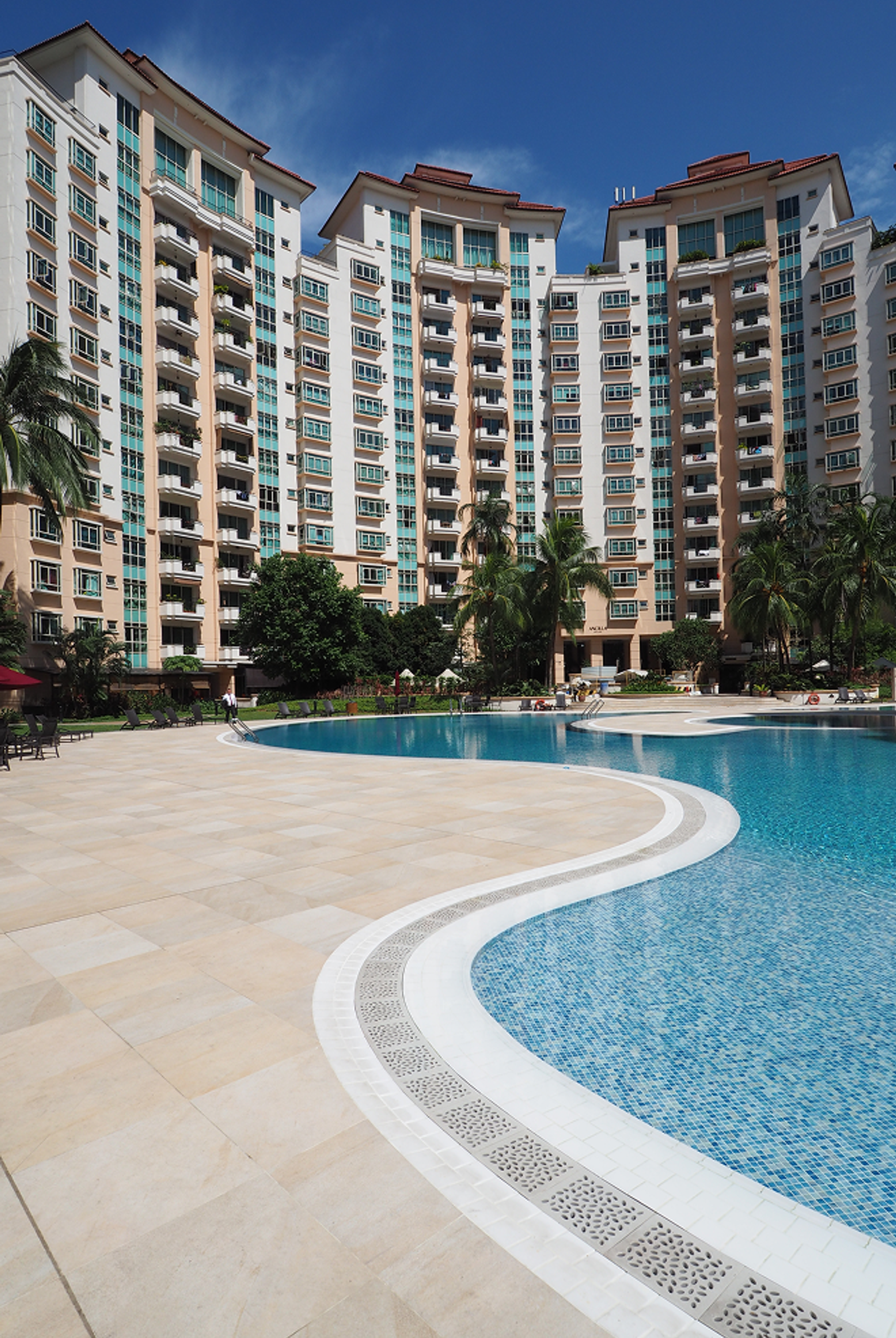

Can I use Jonite pool grates for curved pools?

Yes. Custom curved grates are available in any radius and design. The radius will also be consolidated from a full-scale CAD drawing to help you minimize costs.

Are Jonite pool grates slip resistant?

Jonite pool grates are slip resistant. We have conducted Pendulum and Ramp tests on our products to make sure they meet industry standards for slip resistance. With a class V on the Pendulum test and an R10 on the Ramp test, Jonite can handle most locations and applications.

Are Jonite’s products sustainable?

Jonite commits to environmentally sustainable practices. We actively manage our energy, water, and waste with the future in mind. We use at least 30% recycled aggregates, which reduces carbon emissions by up to 80%.

Jonite products are also Singapore Green Building Product (SGBP) certified (4 ticks, leader). This means that you can score additional points under the Functional Systems Criteria (Flooring, Ceiling, Roof, External Wall, Internal Wall and Door systems) and/or Singular Sustainable Products outside of Functional Systems Criteria. This ensures that sustainability is integrated throughout the design and manufacturing process of green building products.

Contact Jonite for Custom Pool Grates

Like what you see? Jonite’s swimming pool grates are the perfect addition to your landscape architecture designs. Our team can answer your questions about swimming pool grates and provide recommendations to suit your desired aesthetic, lifestyle and budget. Feel free to reach out to us today! We look forward to providing drainage solutions for your pool.

Contact Us via WhatsApp
